BOCA RESEARCH, INC.

BOCARAM AT PLUS (VER.2)

Card Type	Memory card
Chip Set	Unidentified
Maximum Onboard Memory	8MB
Data Bus	16-bit ISA

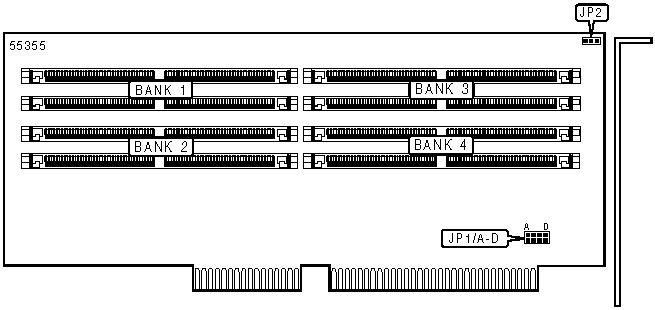

USER CONFIGURABLE SETTINGS
Function		JP2
»	Factory configured - do not alter	Pins 1 & 2 closed

BOARD ID SELECTION
Function		JP1/A	JP1/B	JP1/C	JP1/D
»	Board 1	Closed	Open	Open	Open
	Board 2	Open	Closed	Open	Open
	Board 3	Open	Open	Closed	Open
	Board 4	Open	Open	Open	Closed

SIMM CONFIGURATION
Size	Bank 1	Bank 2	Bank 3	Bank 4
2MB	(2) 1MB x 9	None	None	None
4MB	(2) 1MB x 9	(2) 1MB x 9	None	None
6MB	(2) 1MB x 9	(2) 1MB x 9	(2) 1MB x 9	None
8MB	(2) 1MB x 9	(2) 1MB x 9	(2) 1MB x 9	(2) 1MB x 9
