CT-6120/CT-8120/RS-232x2 ADAPTER IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
CT-6120/CT-8120/RS-232x2 ADAPTER
|
Card Type |
Multi I/O card |
|
Chipset/Controller |
Krueger Company |
|
I/O Options |
Parallel port, serial port (2) |
|
Maximum DRAM |
N/A |
|

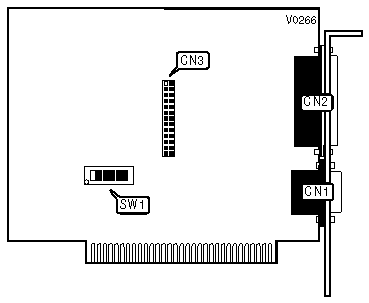

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
Serial port 2 |
CN3 |
|
Parallel port |
CN2 | ||
|
PARALLEL PORT CONFIGURATION | |||||
|
LPT |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
| » |
1 |
On |
On |
Off |
Off |
|
2 |
Off |
On |
On |
Off | |
|
Note: To enable LPT2 for model CT-8120 switches 3 & 4 are Off and switches 5 & 6 are On. | |||||
|
SERIAL PORT CONFIGURATION | ||||
|
COM1 |
COM2 |
SW1/1 |
SW1/2 | |
| » |
Enabled |
Enabled |
On |
On |
|
Disabled |
Disabled |
Off |
Off | |
|
|
|
|
 |
|
