UNIDENTIFIED

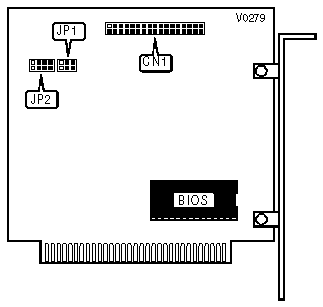

MULTI FLOPPY DISK CARD
|
Card Type |
Floppy drive controller |
|
Chipset/Controller |
Intel Corporation |
|
I/O Options |
Floppy drive interface |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |
|
Purpose |
Location |
|
Floppy drive interface |
CN1 |
|
DRIVE TYPE SELECTION | ||||
|
DRIVE A |
DRIVE B | |||
|
Type |
JP2/1 |
JP2/2 |
JP2/3 |
JP2/4 |
|
360KB |
Closed |
Closed |
Closed |
Closed |
|
1.2MB |
Open |
Closed |
Open |
Closed |
|
720KB |
Closed |
Open |
Closed |
Open |
|
1.44MB |
Open |
Open |
Open |
Open |
|
BIOS ADDRESS SELECTION | |||
|
Address |
JP1/1 |
JP1/2 |
JP1/3 |
|
CA00h-CBFFh |
Open |
Open |
Closed |
|
CC00h-CDFFh |
Open |
Closed |
Open |
|
CE00h-CFFFh |
Closed |
Open |
Open |
|
|
|
|
 |
|
