MULTI FDC CARD IO card Settings and Configuration

Share and Enjoy

Tags

		Articles / TULARC / PC info / I/O Cards / U-Z /

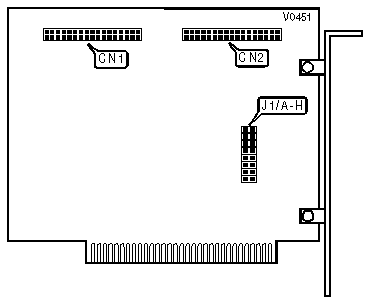

		MULTI FDC CARD IO card Settings and Configuration

Card Type	Floppy drive controller
Chipset/Controller	Unidentified
I/O Options	Floppy drives (4)
Maximum DRAM	N/A

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive interface 1	CN1	Floppy drive interface 2	CN2

FLOPPY DRIVE CONFIGURATION
Drive	Size	J1/A	J1/B	J1/C	J1/D	J1/E	J1/F	J1/G	J1/H
1	360KB	Closed	Open	N/A	N/A	N/A	N/A	N/A	N/A
1	720KB	Closed	Closed	N/A	N/A	N/A	N/A	N/A	N/A
1	1.2MB	Open	Open	N/A	N/A	N/A	N/A	N/A	N/A
1	1.44MB	Open	Closed	N/A	N/A	N/A	N/A	N/A	N/A
2	360KB	N/A	N/A	Closed	Open	N/A	N/A	N/A	N/A
2	720KB	N/A	N/A	Closed	Closed	N/A	N/A	N/A	N/A
2	1.2MB	N/A	N/A	Open	Open	N/A	N/A	N/A	N/A
2	1.44MB	N/A	N/A	Open	Closed	N/A	N/A	N/A	N/A
3	360KB	N/A	N/A	N/A	N/A	Closed	Open	N/A	N/A
3	720KB	N/A	N/A	N/A	N/A	Closed	Closed	N/A	N/A
3	1.2MB	N/A	N/A	N/A	N/A	Open	Open	N/A	N/A
3	1.44MB	N/A	N/A	N/A	N/A	Open	Closed	N/A	N/A
4	360KB	N/A	N/A	N/A	N/A	N/A	N/A	Closed	Open
4	720KB	N/A	N/A	N/A	N/A	N/A	N/A	Closed	Closed
4	1.2MB	N/A	N/A	N/A	N/A	N/A	N/A	Open	Open
4	1.44MB	N/A	N/A	N/A	N/A	N/A	N/A	Open	Closed
