CP-6260 IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
CP-6260
|
Card Type |
Floppy disk controller/Multi I/O |
|
Chipset/Controller |
Unknown |
|
I/O Options |
Floppy disk controller, parallel port, serial ports (2) |
|
Maximum DRAM |
N/A |
|

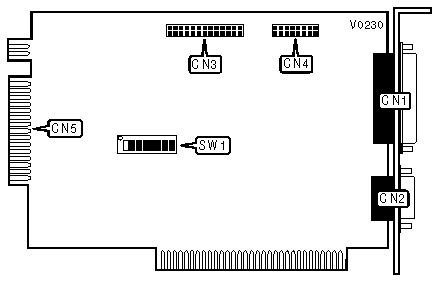

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Serial port 2 |
CN2 |
|
Serial port 1 |
CN3 |
Floppy disk controller |
CN5 |
|
SERIAL PORT CONFIGURATION | ||||
|
Port 1 (CN3) |
Port 2 (CN2) |
SW1/switch 4 |
SW1/switch 5 | |
| » |
Enabled |
Enabled |
On |
On |
|
Disabled |
Disabled |
Off |
Off | |
|
PARALLEL PORT SETTINGS | ||||
|
Parallel port |
LPT |
SW1/switch 3 |
SW1/switch 7 | |
| » |
Enabled |
1 |
On |
On |
|
Disabled |
2 |
Off |
Off | |
|
GAME PORT CONFIGURATION | ||
|
Game port |
SW1/switch 1 | |
| » |
Enabled |
On |
|
Disabled |
Off | |
|
CLOCK CONFIGURATION | ||||
|
Clock |
Address |
SW1/switch 1 |
SW1/switch 8 | |
| » |
Enabled |
377h |
On |
On |
|
Disabled |
277h |
Off |
Off | |
|
FLOPPY DISK CONTROLLER CONFIGURATION | ||
|
Floppy disk controller |
SW1/switch 6 | |
| » |
Enabled |
On |
|
Disabled |
