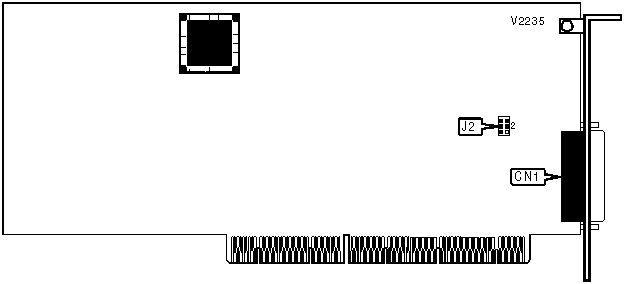

SUPERSEU+ IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SBE, INC.
SUPERSEU+
|
Card Type |
Serial |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (64) |
|
Data Bus |
EISA |
|
CONNECTIONS | |
|
Function |
Label |
|
Serial ports via DB-25 connector |
CN1 |
|
Note:Standard DB-25 serial ports are provided on one or more 16-port external expansion modules. | |
|
POWER TRANSMIT | ||
|
Setting |
J2 | |
| » |
Board sends power to expansion modules |
Pins 1 & 2, 4 & 5 closed |
|
Board does not send power to expansion modules |
Pins 2 & 3, 5 & 6 closed | |
|
Note:If more than one expansion module is connected to the board, external power must be supplied. Board power may still be used in addition. | ||
|
|
|
|
 |
|
