MCT-PDC-HD4 IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||

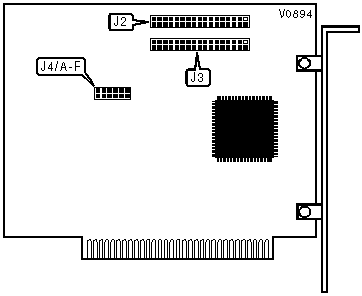

MODULAR CIRCUIT TECHNOLOGY
MCT-PDC-HD4
|
Card Type |
Floppy drive controller |
|
Chipset/Controller |
Unidentified |
|
I/O Options |
Floppy drive interface (4) |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Floppy drive interface (for drives 1 & 2) |
CN1 |
Floppy drive interface (for drives 3 & 4) |
CN2 |
|
FIRST DRIVE TYPE SELECTION | ||
|
Type |
J1/A |
J1/B |
|
360KB |
Closed |
Open |
|
720KB |
Closed |
Closed |
|
1.2MB |
Open |
Open |
|
1.44MB |
Open |
Closed |
|
SECOND DRIVE TYPE SELECTION | ||
|
Type |
J1/C |
J1/D |
|
360KB |
Closed |
Open |
|
720KB |
Closed |
Closed |
|
1.2MB |
Open |
Open |
|
1.44MB |
Open |
Closed |
|
THIRD DRIVE TYPE SELECTION | ||
|
Type |
J1/E |
J1/F |
|
360KB |
Closed |
Open |
|
720KB |
Closed |
Closed |
|
1.2MB |
Open |
Open |
|
1.44MB |
Open |
Closed |
|
FOURTH DRIVE TYPE SELECTION | ||
|
Type |
J1/G |
J1/H |
|
360KB |
Closed |
Open |
|
720KB |
Closed |
Closed |
|
1.2MB |
Open |
Open |
|
1.44MB |
Open |
Closed |
|
|
|
|
 |
|
