INNOVATIVE INTEGRATION
CADC64 (REV. B)
Card Type | Digital I/O card |
I/O Options | Digital/analog I/O connector, factory test connector, memory expansion connector, serial port, emulation connector |
Card Size | Three-quarter length, full-height card |

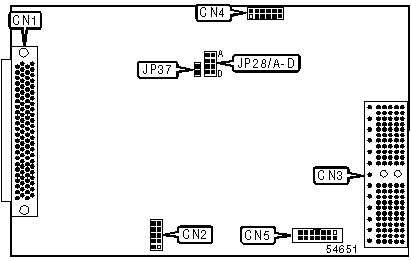

CONNECTIONS | |||
Function | Label | Function | Label |
100-pin digital/analog I/O connector | CN1 | 14-pin emulation connector | CN4 |
Factory test connector - Do not use | CN2 | 14-pin serial connector | CN5 |
Unidentified | CN3 | 96-pin memory expansion connector | CN6 |
Note: The location of CN6 is unidentified. |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Factory configured - do not alter | JP37 | Unidentified |
PROCESSOR INTERRUPT SELECTION | ||||
Interrupt | JP28/A | JP28/B | JP28/C | JP28/D |
PCI write FIFO empty (INT0) | Open | Open | Open | Closed |
PCI read FIFO full (INT1) | Open | Open | Closed | Open |
Analog converter interrupt (INT2) | Open | Closed | Open | Open |
PCI bus interrupt (INT3) | Closed | Open | Open | Open |
