HP 24541B IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
HEWLETT-PACKARD COMPANY
HP 24541B
|
Card Type |
Multi I/O |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Serial ports (2) |
|
Maximum DRAM |
N/A |
|

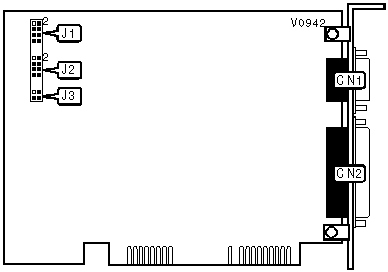

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
Serial port 2 |
CN2 |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
Address |
IRQ |
J1 | |
| » |
COM2 |
3 |
Pins 5 & 6 closed |
|
COM1 |
4 |
Pins 7 & 8 closed | |
|
COM3 |
10 |
Pins 3 & 4 closed | |
|
COM4 |
11 |
Pins 1 & 2 closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
Address |
IRQ |
J1 | |
| » |
COM1 |
4 |
Pins 7 & 8 closed |
|
COM2 |
3 |
Pins 5 & 6 closed | |
|
COM3 |
10 |
Pins 3 & 4 closed | |
|
COM4 |
11 |
Pins 1 & 2 closed | |
|
COMPUTER TYPE SELECTION | ||
|
Type |
J3 | |
| » |
AT |
Pins 1 & 2 closed |
|
XT |
Pins 3 & 4 closed | |
|
|
|
|
 |
|
