EQUINOX SYSTEMS, INC.
MEGAPLEX MCC 24X4
|
Card Type |
Cluster controller |
|
Chip Set |
Unidentified |
|
I/O Options |
Cluster ports (4), daisy-chain connectors |
|
Data Bus |
16-bit ISA |
|

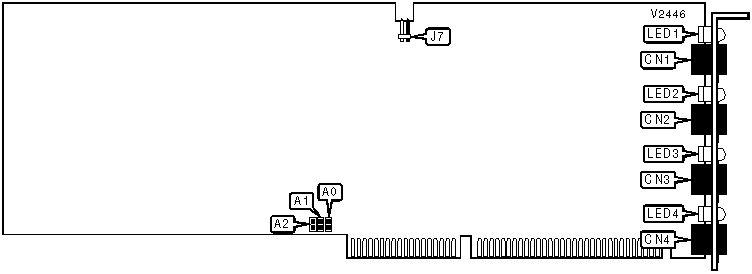

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Cluster port 1 |
CN1 |
Cluster port 4 |
CN4 |
|
Cluster port 2 |
CN2 |
Daisy-chain connector (see pinout below) |
J7 |
|
Cluster port 3 |
CN3 | ||
|
J7 PINOUT | |||
|
Function |
Pin |
Function |
Pin |
|
Signal in |
1 |
Signal out |
2 |
|
Note:To connect a MEGAPLEX board to a MEGAPORT board, connect pin 2 of J7 on the MEGAPLEX to pin 7 of J2 on the MEGAPORT. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Card is installed in ISA slot |
A0 |
Open |
|
Card is installed in EISA slot |
A0 |
Closed | |
| » |
Factory configured - do not alter |
A1 |
Open |
| » |
Factory configured - do not alter |
A2 |
Open |
|
DIAGNOSTIC LED(S) |
|
The function of the LEDs is unidentified. |
|
|
|
|
 |
|
