MC/XEM IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIGI INTERNATIONAL, INC.
MC/XEM
|
Card Type |
Multi-I/O |
|
Processor |
3051 |
|
Processor Speed |
20MHz |
|
Chipset |
Unidentified |
|
Maximum Onboard Memory |
1MB dual-ported RAM |
|
I/O Options |
Parallel ports (4), serial ports (64) |
|
Data Bus |
MCA |
|
Card Size |
Full height, full length |
|

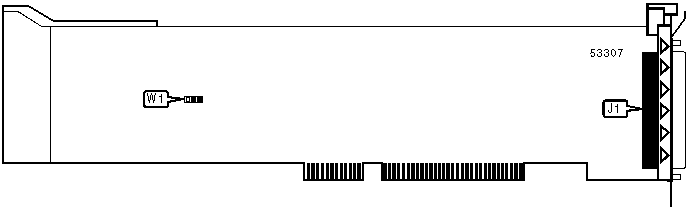

CONNECTIONS | |
|
Function |
Label |
|
Serial/parallel ports via unidentified connector |
J1 |
|
Note:Standard DB-25 serial and parallel ports are provided on external expansion boxes. | |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
W1 |
Pins 2 & 3 closed |
|
|
|
|
 |
|
