8X4GT IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
COROLLARY, INC.
8X4GT
|
Card Type |
Serial |
|
Processor |
80286 |
|
Processor Speed |
25MHz |
|
Chipset |
8530 |
|
Maximum Onboard Memory |
128KB SRAM |
|
I/O Options |
Serial ports (32) |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full height, three-quarters length |
|

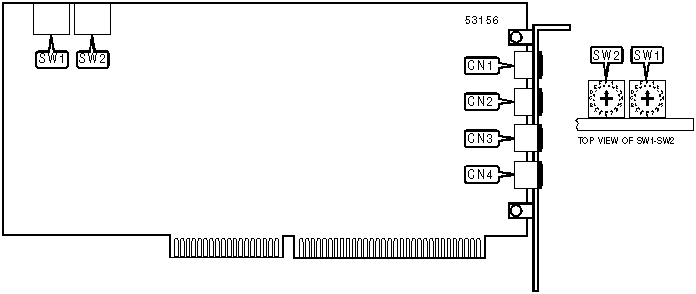

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial ports 1-8 |
CN1 |
Serial ports 17-24 |
CN3 |
|
Serial ports 9-16 |
CN2 |
Serial ports 25-32 |
CN4 |
|
Note:Standard RJ-11 serial ports are provided on external expansion boxes. | |||
|
BASE I/O ADDRESS SELECTION | |||
|
Setting |
SW1 |
SW2 | |
|
0A0000h |
Position A |
Position 0 | |
|
0B0000h |
Position B |
Position 0 | |
|
0C0000h |
Position C |
Position 0 | |
|
0D0000h |
Position D |
Position 0 | |
|
0E0000h |
Position E |
Position 0 | |
| » |
D00000h |
Position 0 |
Position D |
|
D20000h |
Position 2 |
Position D | |
|
D40000h |
Position 4 |
Position D | |
|
D60000h |
Position 6 |
Position D | |
|
D80000h |
Position 8 |
Position D | |
|
DA0000h |
Position A |
Position D | |
|
DC0000h |
Position C |
Position D | |
|
DE0000h |
Position E |
Position D | |
|
E00000h |
Position 0 |
Position E | |
|
E20000h |
Position 2 |
Position E | |
|
E40000h |
Position 4 |
Position E | |
|
E60000h |
Position 6 |
Position E | |
|
E80000h |
Position 8 |
Position E | |
|
EA0000h |
Position A |
Position E | |
|
EC0000h |
Position C |
Position E | |
|
EE0000h |
Position E |
Position E | |
|
Note:If settings below D00000h are used, the card will use 8-bit data transfers. | |||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED |
Red |
On |
Power is on |
|
LED |
Red |
Blinking |
Error has occurred |
|
LED |
Red |
Off |
Power is off |
|
Note:The location of the LED is unidentified. | |||
|
|
|
|
 |
|
