REMORA IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
BITTWARE RESEARCH SYSTEMS
REMORA
|
Card Type |
Expansion card |
|
Chip Set |
Analog Devices, Inc. |
|
Maximum Onboard Memory |
3MB SRAM |
|
I/O Options |
90-pin connectors (4) |
|
Data Bus |
None |
|

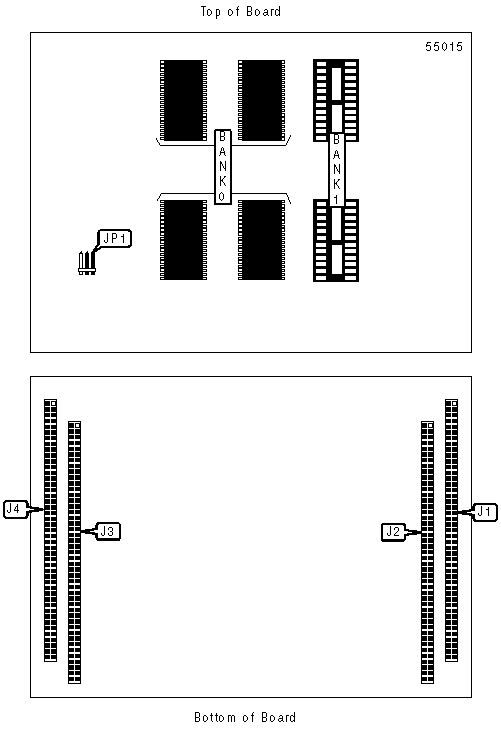

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
SHARCPAC interface connector 1 |
J1 |
SHARCPAC interface connector 3 |
J3 |
|
SHARCPAC interface connector 2 |
J2 |
SHARCPAC interface connector 4 |
J4 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Configure external memory bank as External Memory Bank 1 |
JP1/Pins 1 & 2 |
Closed |
|
Configure external memory bank as External Memory Bank 0 |
JP1/Pins 2 & 3 |
Closed |
|
Note: The board can be configured to use either 32-bit SRAM or both 32-bit and 42-bit SRAM. | ||
|
SRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 | |
| » |
2MB |
(4) 512KB |
None |
|
3MB |
(4) 512KB |
(2) 512KB | |
|
Note: The board can be configured to use either 32-bit SRAM or both 32-bit and 42-bit SRAM. | |||
|
|
|
|
 |
|
