MINI IDE CARD Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
MINI IDE CARD
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, half-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

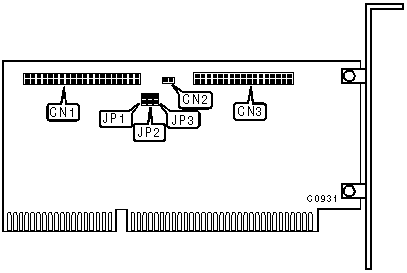

CONNECTIONS | |
|
Function |
Location |
|
40-pin primary IDE(AT) connector |
CN1 |
|
2-pin connector - drive active LED |
CN2 |
|
34-pin cable connector - floppy drive |
CN3 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Location |
Setting |
|
IOCHRDY signal disabled |
JP1 |
open |
|
IOCHRDY signal enabled |
JP1 |
closed |
|
IDE(AT) interface enabled |
JP2 |
open |
|
IDE(AT) interface disabled |
JP2 |
closed |
|
Drive group 1 select |
JP3 |
open |
|
Drive group 2 select |
JP3 |
closed |
|
|
|
|
 |
|
