B-3410 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
B-3410
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

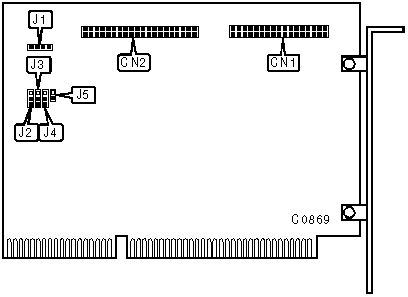

CONNECTIONS | |
|
Function |
Location |
|
34-pin cable connector - floppy drive |
CN1 |
|
40-pin IDE(AT) connector |
CN2 |
|
4-pin connector - drive active LED |
J1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
BIOS is Phoenix |
J2 |
pins 2 & 3 closed |
|
BIOS is IBM |
J2 |
pins 1 & 2 closed | |
| » |
Floppy drive interface enabled |
J3 |
pins 2 & 3 closed |
|
Floppy drive interface disabled |
J3 |
pins 1 & 2 closed | |
| » |
Floppy drive address is 3FXh |
J4 |
pins 1 & 2 closed |
|
Floppy drive address is 3&Xh |
j4 |
pins 2 & 3 closed | |
| » |
Hard drive interface enabled |
J5 |
closed |
|
Hard drive interface disabled |
J5 |
open | |
|
|
|
|
 |
|
