UNIDENTIFIED
3201-B6 HARD DISK AND FLOPPY DISK CONTROLLER
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

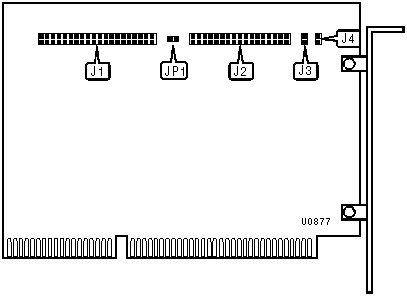

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE(AT) connector |
J1 |
|
34-pin cable connector - floppy drive |
J2 |
|
2-pin connector - drive active LED |
JP1 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Location |
Setting |
|
Floppy drive interface enabled |
J3 |
closed |
|
Floppy drive interface disabled |
J3 |
open |
|
IDE primary address is 3F0h |
J4 |
open |
|
IDE secondary address is 370h |
J4 |
closed |
|
|
|
|
 |
|
