IDE-VLCB Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
IDE-VLCB
|
| |
|
Data bus: |
32-bit, VL-bus |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Four IDE (AT) interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB or 1.44MB drives |
|

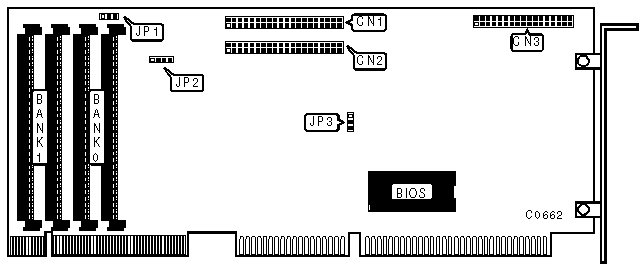

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (AT) interface connector - port 1 |
CN1 |
|
40-pin IDE (AT) interface connector - port 2 |
CN2 |
|
34-pin control cabled connector - floppy drive |
CN3 |
|
4-pin connector - drive active LED |
JP2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
JP1 |
N/A |
| » |
33MHz CPU installed |
JP3 |
Pins 2 & 3 closed |
|
50MHz CPU installed |
JP3 |
Pins 1 & 2 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
At least one bank of SIMMS must be installed for the card to operate. Any combination of 256KB, 1MB, or 4MB (80ns) SIMMS can be installed. |
|
|
|
|
 |
|
