IMPULSE 150A Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PLUS DEVELOPMENT CORPORATION
IMPULSE 150A
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

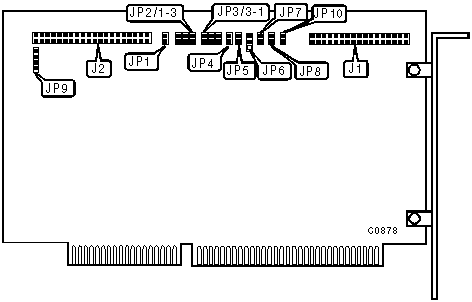

CONNECTIONS | |
|
Function |
Location |
|
34-pin cable connector - floppy drive |
J1 |
|
40-pin IDE(AT) connector |
J2 |
|
4-pin connector - drive active LED |
JP9 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
JP1 |
open |
| » |
Factory configured - do not alter |
JP2/1-3 |
open |
| » |
Factory configured - do not alter |
JP3/1-3 |
open |
| » |
Factory configured - do not alter |
JP4 |
open |
| » |
Factory configured - do not alter |
JP5 |
open |
| » |
Polled BIOS |
JP6/pins 2 & 3 |
closed |
|
BIOS is interrupt driven |
JP6/pins 1 & 2 |
closed | |
| » |
Factory configured - do not alter |
JP7 |
open |
| » |
Floppy drive interface enabled |
JP8 |
closed |
|
Floppy drive interface disabled |
JP8 |
open | |
| » |
Factory configured - do not alter |
JP10 |
closed |
|
|
|
|
 |
|
