BT-746C Hard Disk/Floppy Controller Settings and Configuration |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
|
|
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
MYLEX CORPORATION
BT-746C
|
Card Type |
Hard drive controller card |
|
Hard Drives supported |
Up to 7 SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit EISA |
|
Card Size |
Half-length, full-height card |
|

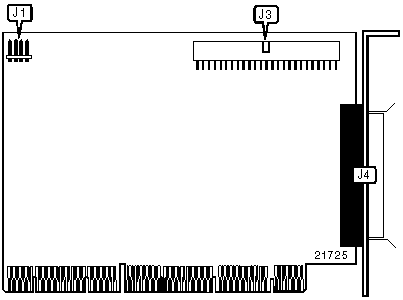

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
4-pin connector - drive active LED |
J1 |
50-pin SCSI connector - external |
J4 |
|
50-pin SCSI connector - internal |
J3 | ||
![]() |
|
|
