BLUE LIGHTNING SCSI-2 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MICROTECH INTERNATIONAL, INC.
BLUE LIGHTNING SCSI-2
|
| |
|
Data bus: |
NuBus |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI-2 devices |
|
Floppy drives supported: |
None |
|

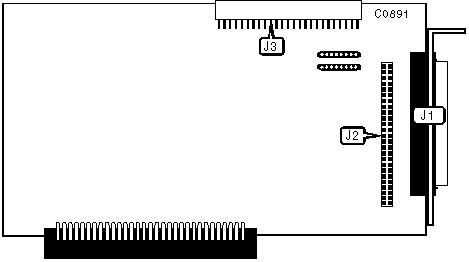

CONNECTIONS | |
|
Function |
Location |
|
68-pin SCSI-2 connector - external |
J1 |
|
50-pin SCSI-2 connector - internal |
J2 |
|
50-pin SCSI-2 connector - internal |
J3 |
|
|
|
|
 |
|
