DCT 8235/8235U Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DOMEX TECHNOLOGY CORPORATION
DCT 8235/8235U
|
Card Type |
Hard drive controller card |
|
Processor |
80486 DX2 66 |
|
Processor Speed |
Unidentified |
|
Maximum Onboard Memory |
64MB DRAM |
|
Hard Drives supported |
Up to 35 SCSI devices |
|
Floppy drives supported |
None |
|
Form factor |
3.5" |
|
Bus type |
External |
|

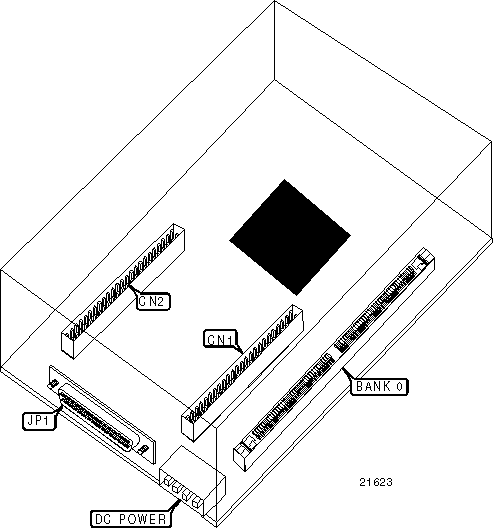

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
Daughter board connector |
CN1 |
SCSI channel 0 connector |
JP1 |
|
Daughter board connector |
CN2 | ||
|
DRAM CONFIGURATION | |
|
Size |
BANK 0 |
|
4MB |
(1) 1MB X 36 |
|
8MB |
(1) 2MB X 36 |
|
16MB |
(1) 4MB X 36 |
|
32MB |
(1) 8MB X 36 |
|
64MB |
(1) 16MB X 36 |

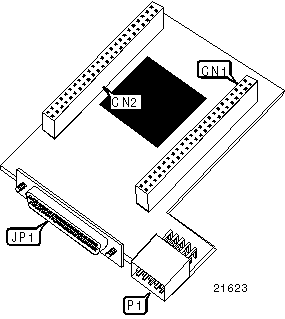

8235-1US DAUGHTER BOARD
|
CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
Daughter board connector |
CN1 |
SCSI channel 2 connector |
JP1 |
|
Daughter board connector |
CN2 |
Failover Port |
P1 |
|
|
|
|
 |
|
