HDFC-1000 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIAMOND FLOWER, INC.
HDFC-1000
|
Data Bus |
16-bit ISA |
|
Card Size |
Full height, half length |
|
Hard Drives Supported |
Two ST506/412(MFM) devices |
|
Floppy Drives Supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

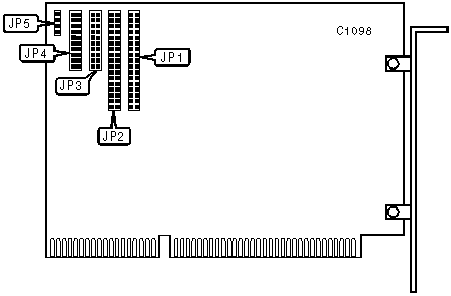

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
34-pin cable connector - floppy drive |
JP1 |
20-pin data cable connector - drive 2 |
JP4 |
|
34-pin control cable connector - hard drive |
JP2 |
4-pin drive active LED |
JP5 |
|
20-pin data cable connector - drive 1 |
JP3 | ||
|
|
|
|
 |
|
