ADVANCED SCSI HOST ADAPTER Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DELL COMPUTER CORPORATION
ADVANCED SCSI HOST ADAPTER
|
Hard Drives supported |
Up to 7 SCSI-2 Fast devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full-height card |
|

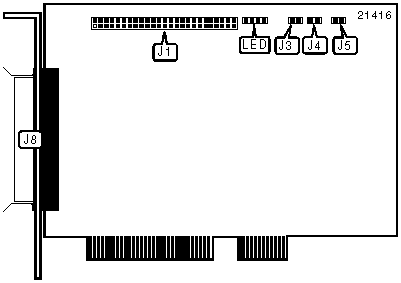

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
50-pin SCSI connector - internal |
J1 |
4-pin connector - drive active LED |
LED |
|
50-pin SCSI connector - external |
J8 | ||
|
TERMINATION SELECTION | ||||
|
Setting |
J3 |
J4 |
J5 | |
| » |
Automatic/smart termination |
Open |
Open |
Closed |
|
Termination always enabled |
Closed |
Open |
Open | |
|
Termination always disabled |
Open |
Closed |
Open | |
|
|
|
|
 |
|
