SCSI ARRAY (DSA) VER. 1.0 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DELL COMPUTER CORPORATION
SCSI ARRAY (DSA) VER. 1.0
|
Card Type |
Hard drive controller card |
|
Processor |
Intel 80960CA RISC |
|
Maximum Onboard Memory |
1.5 MB |
|
Hard Drives supported |
Up to 14 SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit EISA |
|
Card Size |
Full-length, full-height card |
|

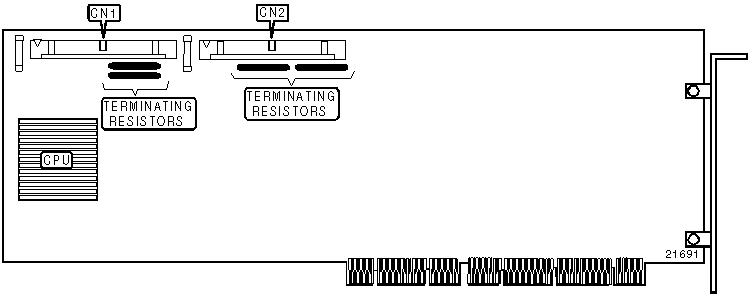

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
SCSI interface |
CN1 |
SCSI interface |
CN2 |
|
|
|
|
 |
|
