IDE DRIVE ARRAY Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DELL COMPUTER CORPORATION
IDE DRIVE ARRAY
|
Card Type |
Hard drive controller card |
|
Processor |
80960KA |
|
Maximum Onboard Memory |
256KB SRAM |
|
Hard Drives supported |
6 to 10 IDE drives |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit EISA |
|
Card Size |
Full-length, full-height card |
|

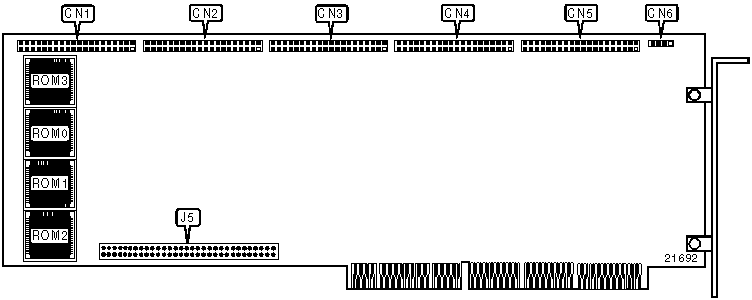

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
40-pin IDE connector |
CN1 |
40-pin IDE connector |
CN5 |
|
40-pin IDE connector |
CN2 |
4-pin connector - drive active LED |
CN6 |
|
40-pin IDE connector |
CN3 |
Connector block - Reserved |
J5 |
|
40-pin IDE connector |
CN4 | ||
|
MISCELLANEOUS TECHNICAL NOTES |
|
Additional power supply is required to support 7 to 10 drives. |
|
All drives should be jumpered as master |
|
|
|
|
 |
|
