DT-3767 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DD&TT ENTERPRISE USA COMPANY
DT-3767
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Two IDE(AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

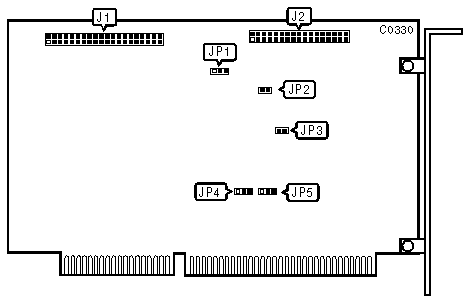

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE(AT) Interface connector |
J1 |
|
34-pin control cable connector-floppy drive |
J2 |
|
2-pin connector-Drive active LED |
JP2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Direct IRQ14 control |
JP1 |
Pins 1 & 2 closed |
|
Select SLAVE/ACTIVE control |
JP1 |
Pins 2 & 3 closed | |
| » |
Floppy drive enabled |
JP3 |
open |
|
Floppy drive disabled |
JP3 |
closed | |
| » |
Hard drive (CS0) port address is 1F0-1F7h |
JP4 |
Pins 2 & 3 closed |
|
Hard drive (CS0) port address is 170-177h |
JP4 |
Pins 1 & 2 closed | |
|
Hard drive disabled |
JP4 & JP5 |
open | |
| » |
Hard drive (CS1) port address is 3F0-3F7h |
JP5 |
Pins 2 & 3 closed |
|
Hard drive (CS1) port address is 370-377h |
JP5 |
Pins 1 & 2 closed | |
|
|
|
|
 |
|
