DTC5160CX Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DATA TECHNOLOGY CORPORATION
DTC5160CX
|
| |
|
Data bus: |
8-bit, ISA |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Two RLL ST506/412 drives |
|
Floppy drives supported: |
None |
|

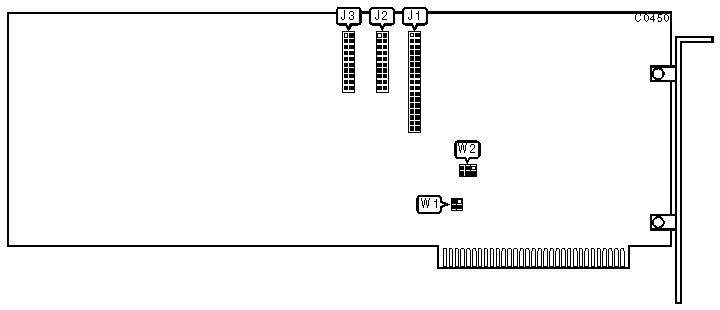

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - hard drive |
J1 |
|
20-pin data cable connector-drive 0 |
J2 |
|
20-pin data cable connector-drive 1 |
J3 |
|
BIOS ADDRESS | ||||
|
Address |
W2/jumper 1 |
W2/jumper 2 |
W2/jumper 3 | |
| » |
C800h |
open |
open |
closed |
|
D000h |
closed |
open |
closed | |
|
D800h |
open |
closed |
closed | |
|
F400h |
closed |
closed |
closed | |
|
Disabled |
n/a |
n/a |
open | |
|
BIOS SIZE | ||
|
Size |
W1/jumper 1 |
W1/jumper 2 |
|
8KB |
closed |
open |
|
16KB |
open |
closed |
|
|
|
|
 |
|
