RIMFIRE 5600 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
CIPRICO, INC.
RIMFIRE 5600
Data bus: 32-bit, EISA
Size: Full-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|

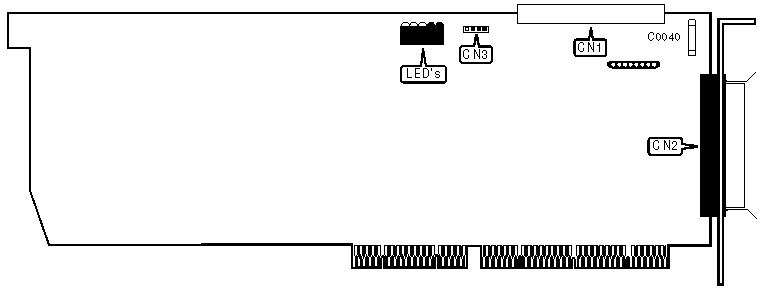

CONNECTORS | |
|
Function |
Location |
|
50-pin SCSI connector-internal |
CN1 |
|
50-pin SCSI connector-external |
CN2 |
|
4-pin connector-drive active LED |
CN3 |
|
STATUS LEDS | |
|
LED |
Definition |
|
LED 1-Yellow |
DMA transfer in progress |
|
LED 2-Yellow |
Adapter has queued commands |
|
LED 3-Yellow |
Adapter is idle and waiting on host |
|
LED 4-Red |
Self-Test. If flashing or stays on for extended period, test has failed. |
|
LED 5-Green |
Adapter is processing command |
|
MISCELLANEOUS TECHNICAL NOTES |
|
All configurations are done through firmware. |
|
|
|
|
 |
|
