AHA-2940 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADAPTEC, INC.
AHA-2940
|
| |
|
Data bus: |
PCI local-bus |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

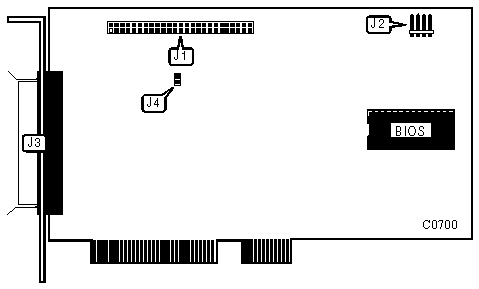

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector - internal |
J1 |
|
4-pin connector - drive active LED |
J2 |
|
50-pin SCSI connector - external |
J3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
TERMPWR disabled |
J4 |
open |
|
TERMPWR enabled |
J4 |
closed | |
|
|
|
|
 |
|
