AHA-1510A Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADAPTEC, INC.
AHA-1510A
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

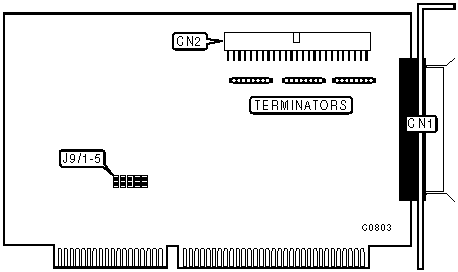

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector - external |
CN1 |
|
50-pin SCSI connector - internal |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Adapter I/O address is 340h |
J9/5 |
open |
|
Adapter I/O address is 140h |
J9/5 |
closed | |
|
Note: When connecting both external & internal devices to 1510A - remove terminators | |||
|
INTERRUPT SELECTION | |||||
|
IRQ |
J9/1 |
J9/2 |
J9/3 |
J9/4 | |
| » |
11 |
open |
closed |
open |
open |
|
9 |
open |
open |
open |
closed | |
|
10 |
open |
open |
closed |
open | |
|
12 |
closed |
open |
open |
open | |
|
|
|
|
 |
|
