UNIDENTIFIED
TVGA-8
|
Category |
Video |
|
Video Types Supported |
Monochrome/VGA |
|
Video Processor |
TVGA |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

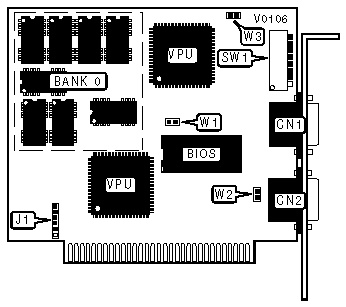

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin TTL video port |
CN1 |
Light Pen connector |
J1 |
|
15-pin analog video port |
CN2 |
|
|
|
I/O ADDRESS SELECTION | |
|
Address |
W1 |
|
2xx |
Closed |
|
3xx |
Open |
|
XT SLOT SELECTION | |
|
Slot |
W2 |
|
8 |
Closed |
|
Other |
Open |
|
SMALL PALETTE CONFIGURATION | |
|
Palette |
W3 |
|
256,000 Color DAC |
Closed |
|
16,000,000 Color DAC |
Open |
|
MONITOR TYPE SELECTION | ||||||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
Monochrome |
Off |
On |
On |
Off |
On |
On |
On |
On |
|
PS/2 |
On |
On |
On |
Off |
On |
On |
On |
On |
|
Analog Multi-frequency |
Off |
On |
On |
Off |
On |
Off |
On |
Off |
|
|
|
|
 |
|
