TD3088A3 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
TD3088A3
|
Category |
Video |
|
Video Types Supported |
Monochrome |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|

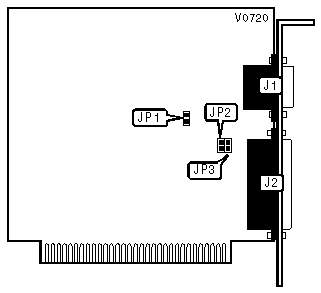

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin digital video port |
J1 |
Parallel port |
J2 |
|
ROM SELECT | |
|
Setting |
JP1 |
|
2732 ROM chip installed |
Open |
|
2764 ROM chip installed |
Closed |
|
PARALLEL PORT CONFIGURATION | ||
|
LPT/Address |
JP2 |
JP3 |
|
» LPT1/3BCh |
Open |
Open |
|
LPT2/378h |
Closed |
Open |
|
LPT3/278h |
Open |
Closed |
|
Disabled |
Closed |
Closed |
|
|
|
|
 |
|
