MONOCHROME/GRAPHIC PRINTER CARD video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
MONOCHROME/GRAPHIC PRINTER CARD
|
Category |
Graphics/printer card |
|
Video Types Supported |
Monochrome |
|
Video Processor |
N/A |
|
Highest Resolution Supported |
640 x 200 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB (Exact location of memory is unidentified) |
|

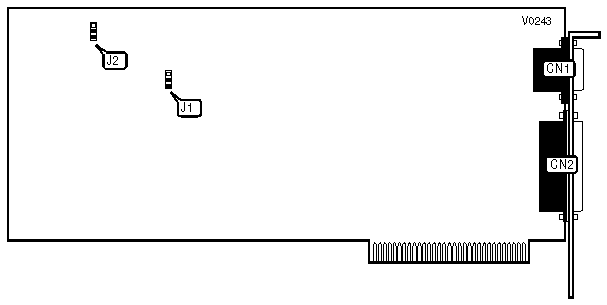

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Parallel port |
CN2 |
|
PARALLEL PORT CONFIGURATION | ||
|
Port |
J2 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
HERCULES DISPLAY MODE SELECTION | |
|
Mode |
J1 |
|
Hercules V1 |
Pins 1 & 2 closed |
|
Hercules V2 |
Pins 2 & 3 closed |
|
|
|
|
 |
|
