MGP video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / U-Z / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MGP video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
MGP
|
Category |
Graphics/printer card |
|
Video Type |
Monochrome |
|
Video Processor |
Unknown |
|
Highest Resolution Supported |
640 x 200 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB (Location unknown) |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin analog video port |
CN1 |
Parallel port |
CN2 |
|

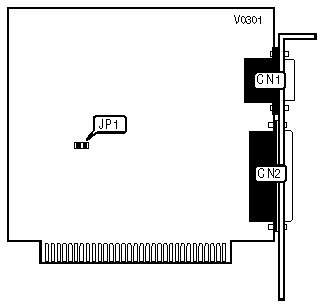

PARALLEL PORT CONFIGURATION | ||
|
Port |
JP1 | |
| » |
Enabled |
Off |
|
Disabled |
On | |
|
|
|
|
 |
|
