UNIDENTIFIED
MGP - IV
|
Category |
Video |
|
Video Types Supported |
Monochrome |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|

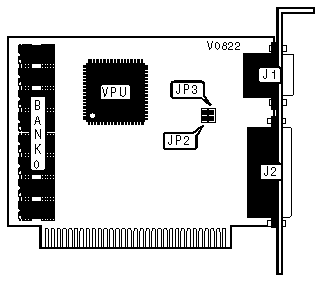

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin digital port |
J1 |
Parallel port |
J2 |
|
PARALLEL PORT |
|||
|
Setting |
JP2 |
JP3 |
|
|
» |
LPT1 |
Open |
Open |
|
LPT2 |
Closed |
Open |
|
|
LPT3 |
Open |
Closed |
|
|
Disabled |
Closed |
Closed |
|
|
|
|
|
 |
|
