UNIDENTIFIED
MGP CARD (401)
|
Card Type |
Parallel card, Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
None |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
720 x 348 |
|

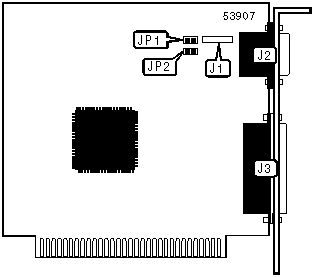

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Light pen port |
J1 |
25-pin parallel port |
J3 |
|
15-pin video analog video port |
J2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Second language enabled |
JP1 |
Open |
|
C.G. chip enabled |
JP1 |
Closed |
|
Parallel port enabled |
JP2 |
Open |
|
Parallel port disabled |
JP2 |
Closed |
|
|
|
|
 |
|
