SYSDYNE! CMG P video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
SYSDYNE! CMG P
|
Category |
Video |
|
Video Types Supported |
Monochrome/CGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 350 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
N/A |
|
Maximum Onboard Memory |
N/A |
|

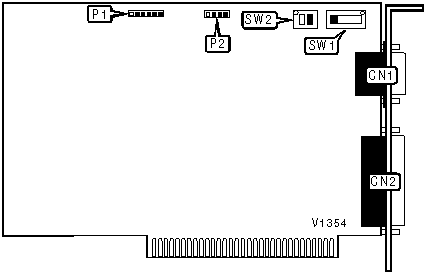

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
6-pin light pen connector |
P1 |
|
25-pin parallel port |
CN2 |
4-pin composite video connector |
P2 |
|
MONITOR SELECTION | |
|
Setting |
SW1 |
|
Color |
Forward |
|
Monochrome |
Rearward |
|
PARALLELPORT CONFIGURATION | ||
|
LPT |
SW2/1 |
SW2/2 |
|
LPT1 (378h - 37Fh) |
Off |
On |
|
LPT2 (278h - 27Fh) |
On |
Off |
|
LPT3 (3BCh - 3BEh) |
Off |
Off |
|
Disabled |
On |
On |
|
|
|
|
 |
|
