M.G.P. PLUS video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / U-Z / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
M.G.P. PLUS video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||

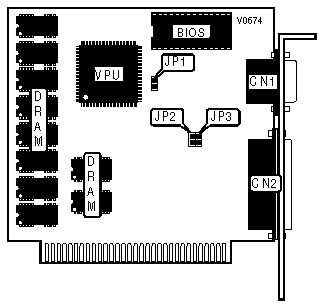

UNIDENTIFIED
M.G.P. PLUS
|
Category |
Video |
|
Video Types Supported |
MDA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
25-pin parallel port |
CN2 |
|
BIOS SELECT | |
|
Setting |
JP1 |
|
UM2301 |
Open |
|
2764 |
Closed |
|
PARALLEL PORT SELECT | ||
|
Setting |
JP2 |
JP3 |
|
Disable |
Closed |
Closed |
|
LPT3 - 278 |
Open |
Closed |
|
LPT2 - 378 |
Closed |
Open |
|
LPT1 - 3BC |
Open |
Open |
|
|
|
|
 |
|
