MONO/GRAPHIC/PRINTER CARD video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
MONO/GRAPHIC/PRINTER CARD
|
Card Type |
Graphics Adapter/Parallel port |
|
Chipset/Controller |
Hitachi |
|
I/O Options |
Parallel port, TTL video port |
|
Maximum DRAM |
64KB |
|

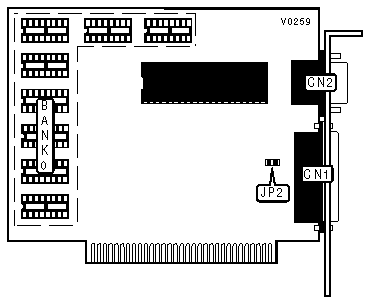

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
9-pin video port |
CN2 |
|
PARALLEL PORT CONFIGURATION | ||
|
Port |
JP2 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
|
|
|
 |
|
