CGA-PC/T video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / U-Z / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
CGA-PC/T video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
CGA-PC/T
|
Category |
Graphics/printer card |
|
Video Type |
CGA/Monochrome |
|
Video Processor |
Unknown |
|
Highest Resolution Supported |
640 x 200 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB (Location unknown) |
|

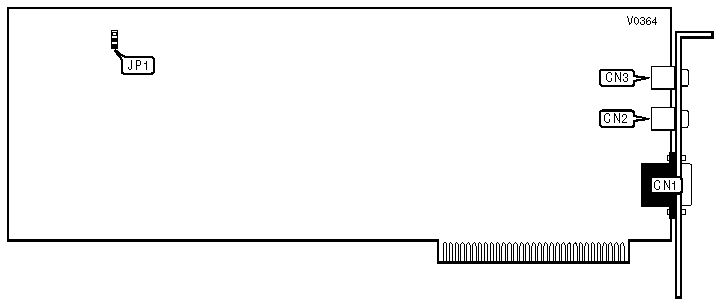

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin analog video port |
CN1 |
RCA jack 2 (Color Composite) |
CN3 |
|
RCA jack 1 (B/W composite) |
CN2 | ||
|
SCREEN BLINK CONFIGURATION | ||
|
Setting |
JP1 | |
| » |
Screen blink disabled |
Pins 1 & 2 closed |
|
Screen blink enabled |
Pins 2 & 3 closed | |
|
|
|
|
 |
|
