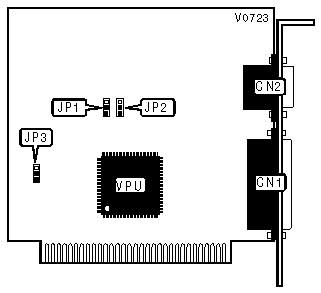

MAGIC COMBO VIDEO ADAPTER video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
MAGIC COMBO VIDEO ADAPTER
|
Category |
Video |
|
Video Types Supported |
CGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 (Monochrome) |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
Unidentified |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
15-pin analog video port |
CN2 |
|
MONITOR TYPE | |
|
Setting |
JP1 |
|
Monochrome monitor |
Pins 1 & 2 closed |
|
Color monitor |
Pins 2 & 3 closed |
|
VIDEO MODE | |
|
Setting |
JP2 |
|
MGA/MDA |
Pins 1 & 2 closed |
|
CGA |
Pins 2 & 3 closed |
|
PARALLEL PORT | |
|
Setting |
JP3 |
|
» Enabled |
Pins 2 & 3 closed |
|
Disabled |
Pins 1& 2 closed |
|
|
|
|
 |
|
