VGA-16T/89C video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / U-Z / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
VGA-16T/89C video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
VGA-16T/89C
|
Category |
Video |
|
Video Types Supported |
CGA, EGA, Hercules, MGA, VGA, XVGA |
|
Video Processor |
Trident |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1024KB |
|

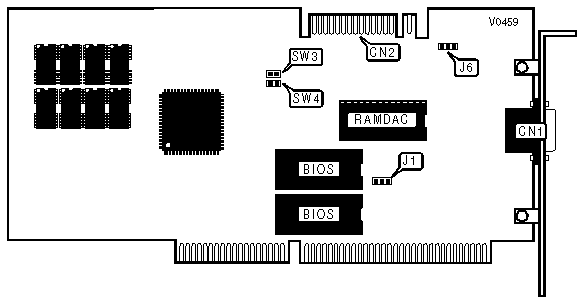

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA Feature connector |
CN2 |
|
INTERRUPT SELECT | ||
|
IRQ9 |
J1 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
MONITOR TYPE | ||
|
Type |
J6 | |
| » |
Standard color |
Pins 1 & 2 closed |
|
Non-standard color(Samsung, Goldstar) |
Open | |
|
Non-standard monochrome |
Pins 2 & 3 closed | |
|
SCAN RATE SELECT | ||
|
Rate |
SW3 | |
| » |
Normal |
Open |
|
48.7KHz |
Closed | |
|
SLOT SIZE AUTODETECT | |
|
Setting |
SW4 |
|
Enabled |
Open |
|
Disabled |
Closed |
|
|
|
|
 |
|
