MVP-2/MC video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / S-T / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MVP-2/MC video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
STB SYSTEMS, INC.
MVP-2/MC
|
Card Type |
Video card |
|
Video Chip Set |
Tseng Labs ET4000 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Maximum Video Memory |
2MB DRAM |
|
Data Bus |
MCA |
|
Video Types Supported |
XVGA |
|

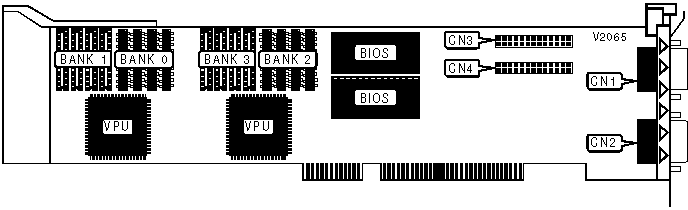

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
VGA port 1 - 15-pin |
CN1 |
VGA feature connector for channel 1 |
CN3 |
|
VGA port 2 - 15-pin |
CN2 |
VGA feature connector for channel 2 |
CN4 |
|
DRAM - CHANNEL 1 | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(4) 128KB |
NONE |
|
1MB |
(4) 128KB |
(4) 128KB |
|
DRAM - CHANNEL 2 | ||
|
Size |
Bank 2 |
Bank 3 |
|
512KB |
(4) 128KB |
NONE |
|
1MB |
(4) 128KB |
(4) 128KB |
|
|
|
|
 |
|
