MACH - 512 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / S-T / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MACH - 512 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
STB SYSTEMS, INC.
MACH - 512
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|

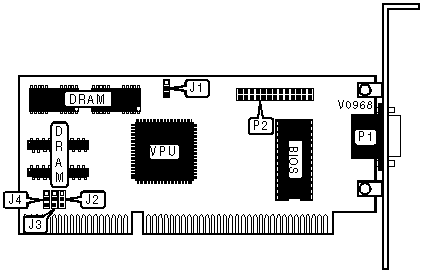

15-pin analog video port |
P1 |
VGA feature connector |
P2 |
|
VERTICAL REFRESH RATE SELECTION |
|
|
Mode |
J1 |
|
Standard |
Pins 2 & 3 closed |
|
ERGO |
Pins 1 & 2 closed |
|
BUS TYPE SELECTION |
||||
|
Setting |
J4 |
J3 |
J2 |
|
|
» |
16-bit |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
8-bit |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
|
|
|
 |
|
