LIGHTSPEED 128 video card Settings and Configuration |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
|
|
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
STB SYSTEMS, INC.
LIGHTSPEED 128
|
Card Type |
Multimedia Accelerator |
|
Video Chip Set |
Tseng Labs |
|
Maximum Video Memory |
2.25 MB MDRAM |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
32-bit PCI |
|

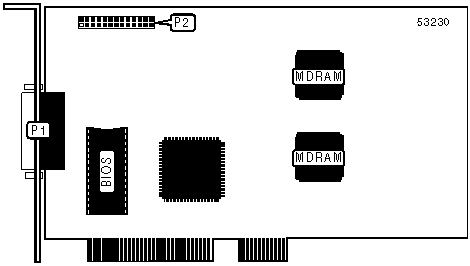

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
P1 |
Feature connector |
P2 |
![]() |
|
|
