HORIZON 64 PCI (VER. 2) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
STB SYSTEMS, INC.
HORIZON 64 PCI (VER. 2)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
32-bit PCI |
|

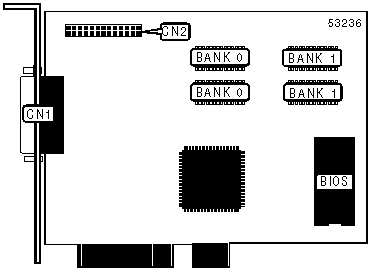

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Vesa feature connector |
CN2 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 512KB |
None |
|
2MB |
(2) 512KB |
(2) 512KB |
|
|
|
|
 |
|
