VIRGE/GX 2MB 3D PCI, VIRGE/GX 4MB 3D PCI video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
STB SYSTEMS, INC.
VIRGE/GX 2MB 3D PCI, VIRGE/GX 4MB 3D PCI
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
4MB EDO DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

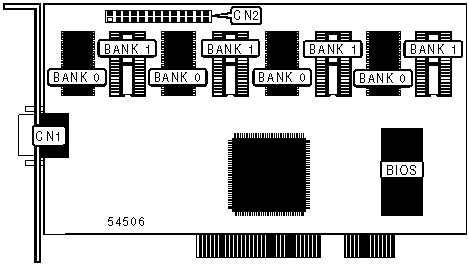

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
VIDEO MEMORY CONFIGURATION (EDO DRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256KB x 16 |
None |
|
4MB |
(2) 256KB x 16 |
(2) 256KB x 16 |
|
|
|
|
 |
|
