STB SYSTEMS, INC.
MONO PLUS
|
Card Type |
Multi-I/O card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
N/A |
|
I/O Options |
Monochrome display adapter, parallel port |
|
Data Bus |
8-bit ISA |
|

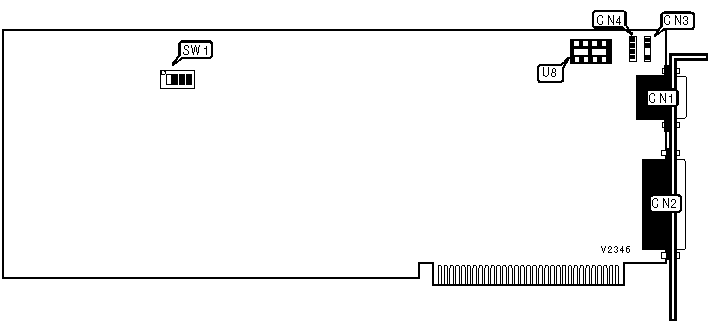

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Battery connector |
CN3 |
|
Parallel port |
CN2 |
Clock generator socket |
U8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
Factory configured - do not alter |
SW1/2 |
On |
| » |
Factory configured - do not alter |
SW1/3 |
On |
| » |
Factory configured - do not alter |
SW1/4 |
On |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: The function of connector CN4 is unidentified. |
|
|
|
|
 |
|
