SPIDER GRAPHICS, INC.
TARANTULA LITE
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
2MB |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
32-bit PCI |
|

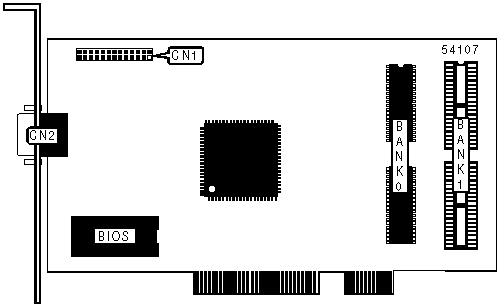

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
CN1 |
15-pin analog video port |
CN2 |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256KB x 16 |
None |
|
2MB |
(2) 256KB x 16 |
(2) 256KB x 16 |
|
|
|
|
 |
|
