CRUNCH IT video card Settings and Configuration |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
||
![]() |
||||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
|
|
||
![]() |
||
![]() |
![]() |
![]() |
![]() |
||
![]() |
||
SPEA SOFTWARE AG
CRUNCH IT
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
16-bit ISA |
|

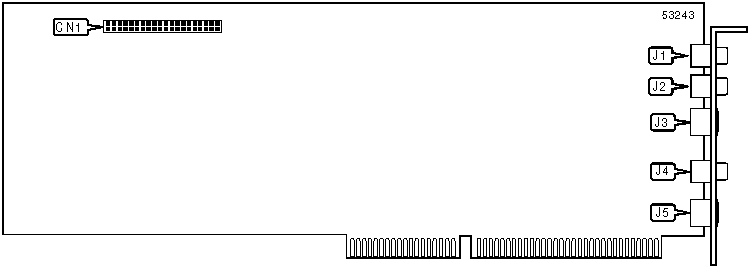

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Proprietary connector |
CN1 |
S-video in |
J3 |
|
Composite video in |
J1 |
Composite video out |
J4 |
|
Composite video in |
J2 |
S-video out |
J5 |
![]() |
|
|
